Paper Box Crash Lock Bottom Folder Gluer Machine Mutifunctional 3.2KW

Name: Paper Box Crash Lock Bottom Folder Gluer Machine Mutifunctional 32KW
Brand: PRINTYOUNG
Price: 1 USD

Best Paper Box Crash Lock Bottom Folder Gluer Machine Mutifunctional 3.2KW wholesale

Brand Name : PRINTYOUNG

Model Number : ZH-800G

Certification : CE

Place of Origin : China

MOQ : 1 Set

Payment Terms : L/C, T/T

Supply Ability : 20 Set/Sets per Month

Delivery Time : 30 days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Automatic Grade : Automatic

Driven Type : Mechanical

Voltage : 380V

Dimension : 10.2*1.5*1.3M

Weight : 1.9t

Warranty : 1 Year

Key Selling Points : Muti-functional

Suitable paper : 210-600g/m2 paperboard

Line Speed : 0-220m/min continuous adjustment

Contact Now

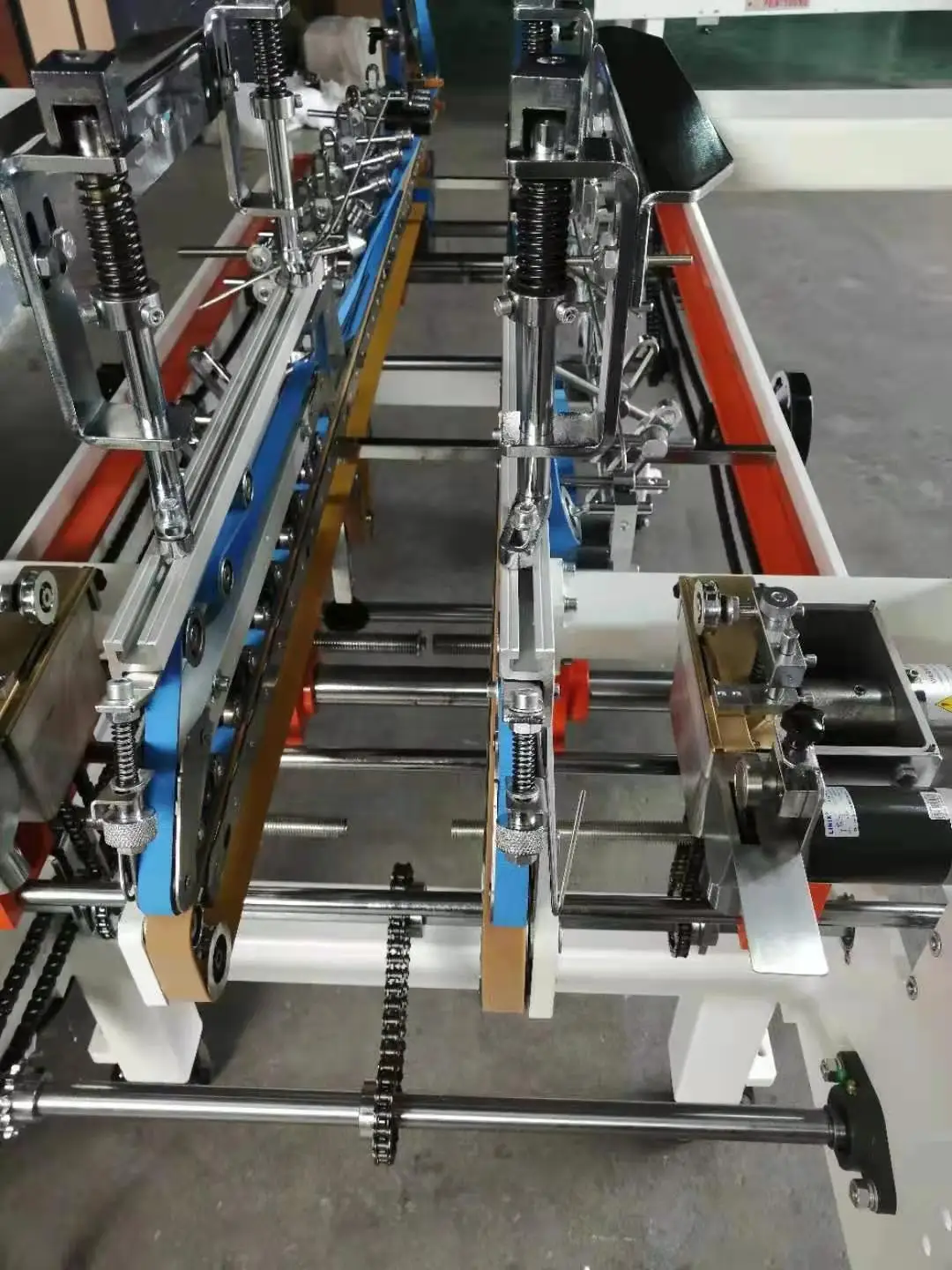

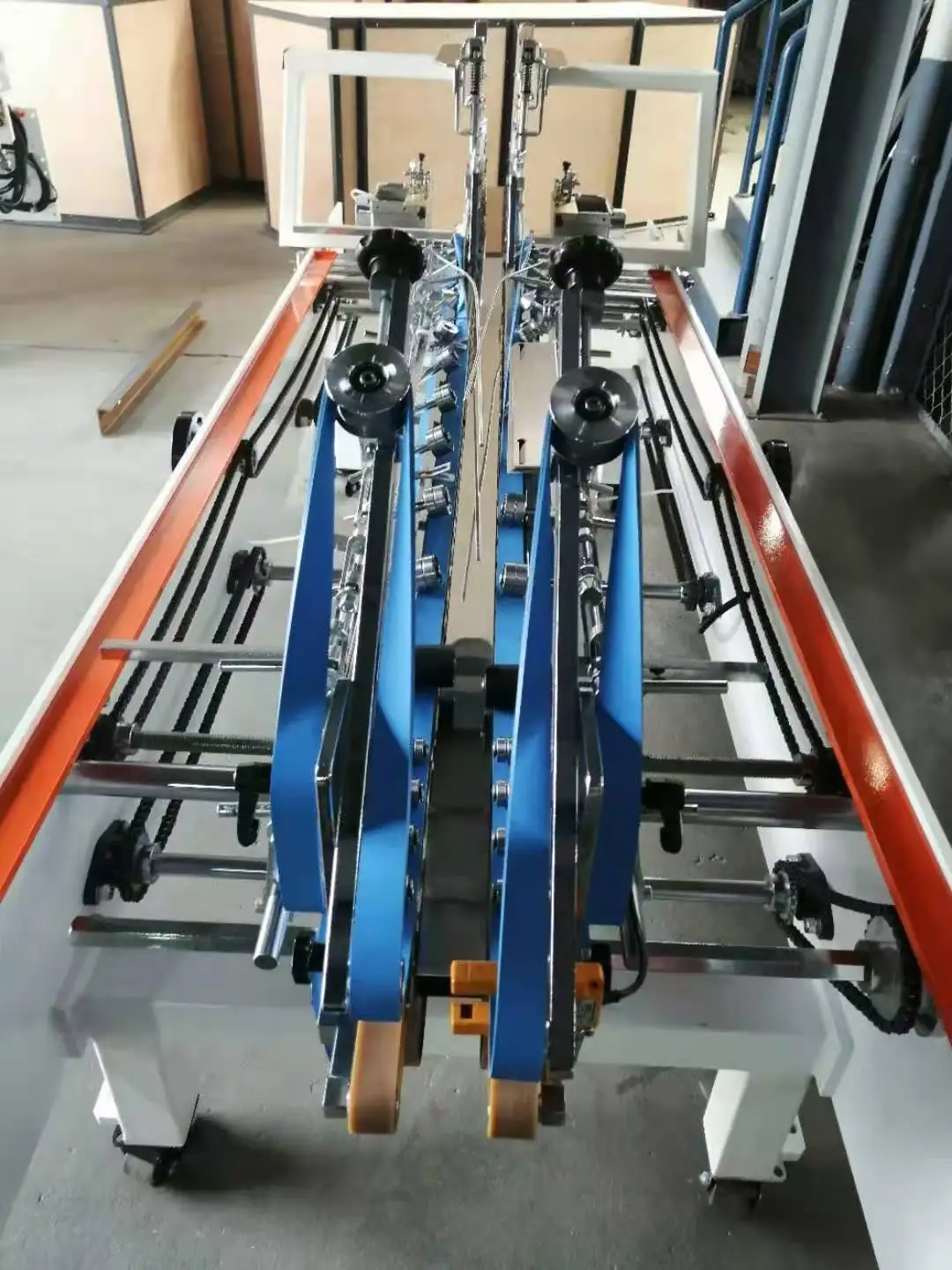

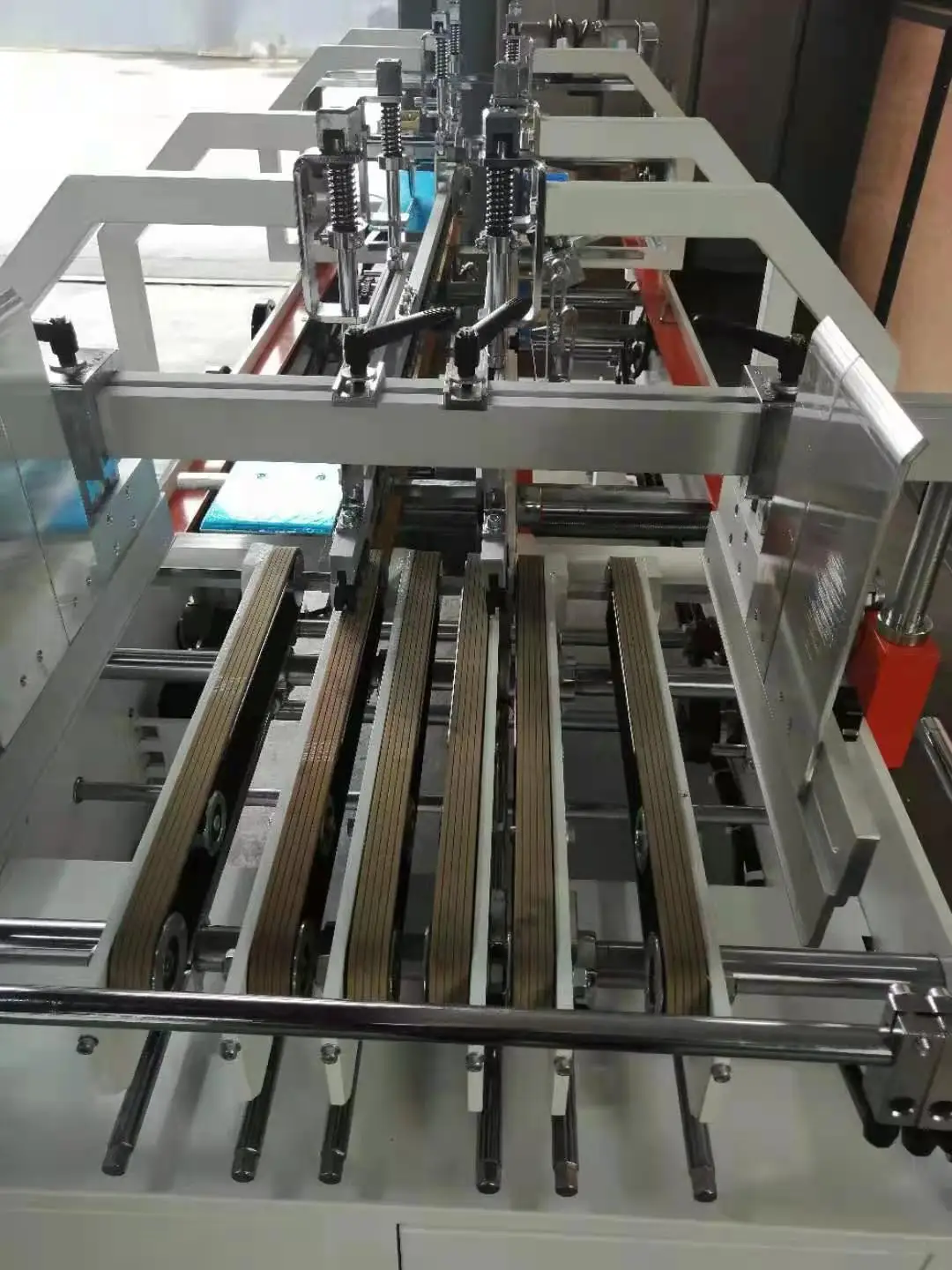

ZH-800G Automatic Muti-functional Crash Lock Bottom Folder Gluer

Features

1, It combines a variety of folder gluer functions: straight line box, pre-fold box, crash lock bottom box.

2, The crash lock bottom structure has obtained two national patents.

3, The function is universal and easy to operation.

4, The conveyor has separate motor to control speed. It has auto trombone control function(only when the box coming, the pressing unit works).

5, Wireless remote control.

Technical Parameters

PRY-ZH-800G Automatic Muti-functional Crash Lock Bottom Folder Gluer
Model No.	PRY-ZH-800G
Line Speed	0-220m/min continuous adjustment
Suitable paper	210-600g/m²paperboard
Box Forming	single side gluing or both side gluing and pre-folding , crash lock bottom
Paper feeding method	Paper feeding
Glue	Cold glue
Power	ZH-600G: 380V 3.2KW	ZH-700G: 380V 3.2KW	ZH-800G: 380V 4.5KW
Weight	ZH-600G: 1.6t	ZH-700G: 1.7t	ZH-800G: 1.9t
Dimension	ZH-600G: 8.51.21.3M	ZH-700G:8.51.351.3M	ZH-800G:10.21.51.3M
Steel frame Packing Size	ZH-600G 8.94m³ 1585/1817kg	ZH-700G 9.54m³ 1623/1866kg	ZH-800G 12.32m³1888/2185kg
Feeding Part	27009501235=3.17 m³ 742/827kg	270010501235=3.50m³ 763/856kg	270011501235=3.83m³ 783/886kg
Folding Part	218511001235=2.97m³ 443/520kg	218512001235=3.24m³ 460/540kg	288513001235=4.63m³ 630/712kg
Conveyor Part	26609501110=2.80 m³ 400/470kg	26609501110=2.80 m³ 400/470kg	36609501110=3.86 m³ 475/587kg

Paper Box Crash Lock Bottom Folder Gluer Machine Mutifunctional 3.2KW

Configuration

Technical Parameters

Samples

Q1: Are you a manufacturer or a trading company?

A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.

Q2. What is the machine warranty?

A: One year. After the warranty, we still provide technical support to buyer at low cost.

Q3. What is the production time while placing order?

A: Normally about 10-20 days.

Q4. What is the delivery time?

A: 15-30days after deposit.

Q5. Can your company handle shipping for customers?

A: Yes, just give us destination sea port or container yard.

Q6. Does the packing strong?

A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..

Q7. How about the machine installation and training ?

A: 1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.

Q8. Do you have machines in stock?

A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.

Q9. How can you assure the machines’ quality?

A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.

Q10. Do you inspect machines or test running before packing?

A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material

Q11. What’s the payment term?

A: T/T 50% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.

Q12. Do you accept factory visiting?

A: Warmly welcome for your visiting.

Q13. How many years are you in printing field?

A: Shanghai company is 12 years old, the factory is more than 20years.

Q14. How many clients do you have?

A: We have sold our machines to about 60 countries. We have agents in South Africa, Morocco and Italy.
